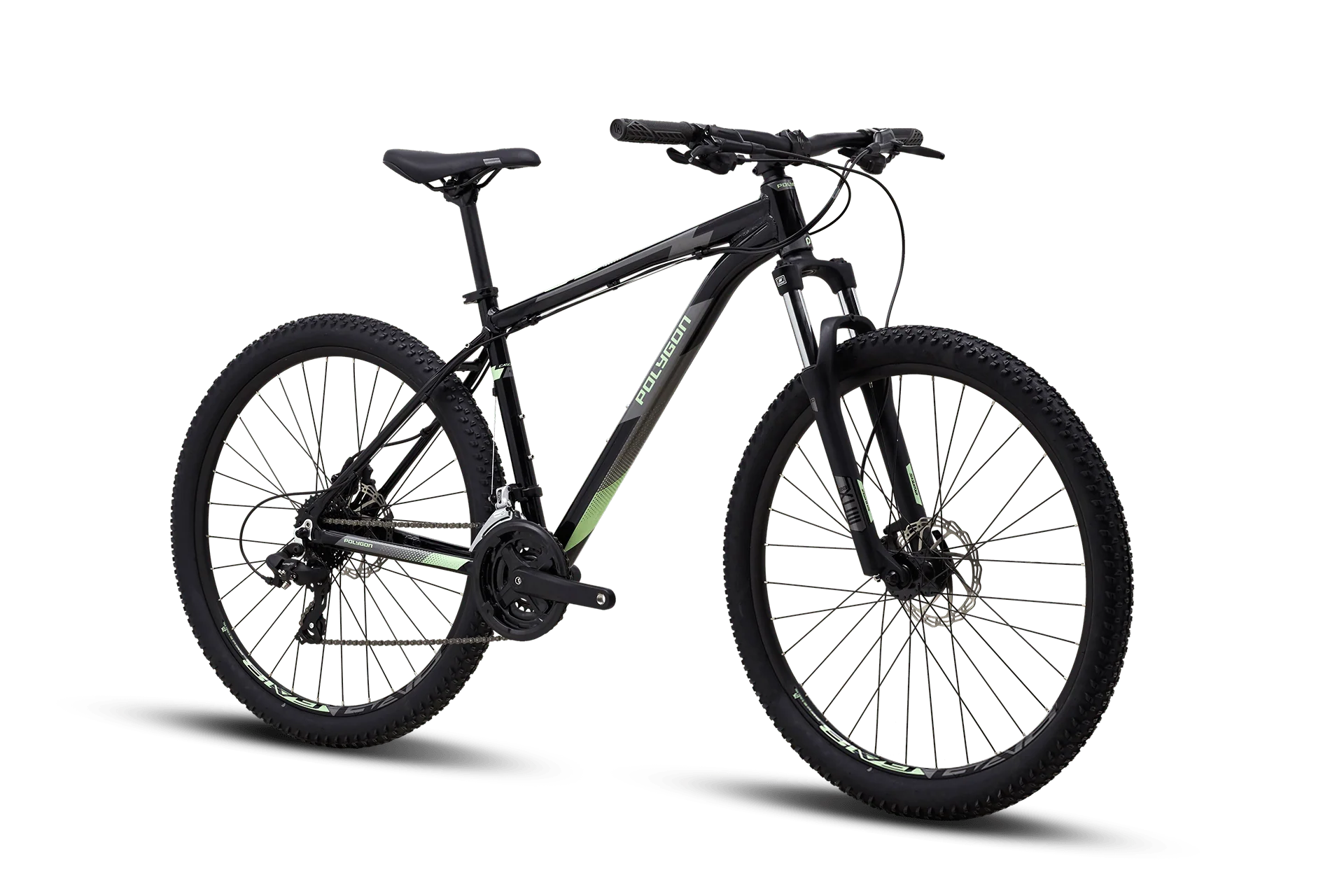

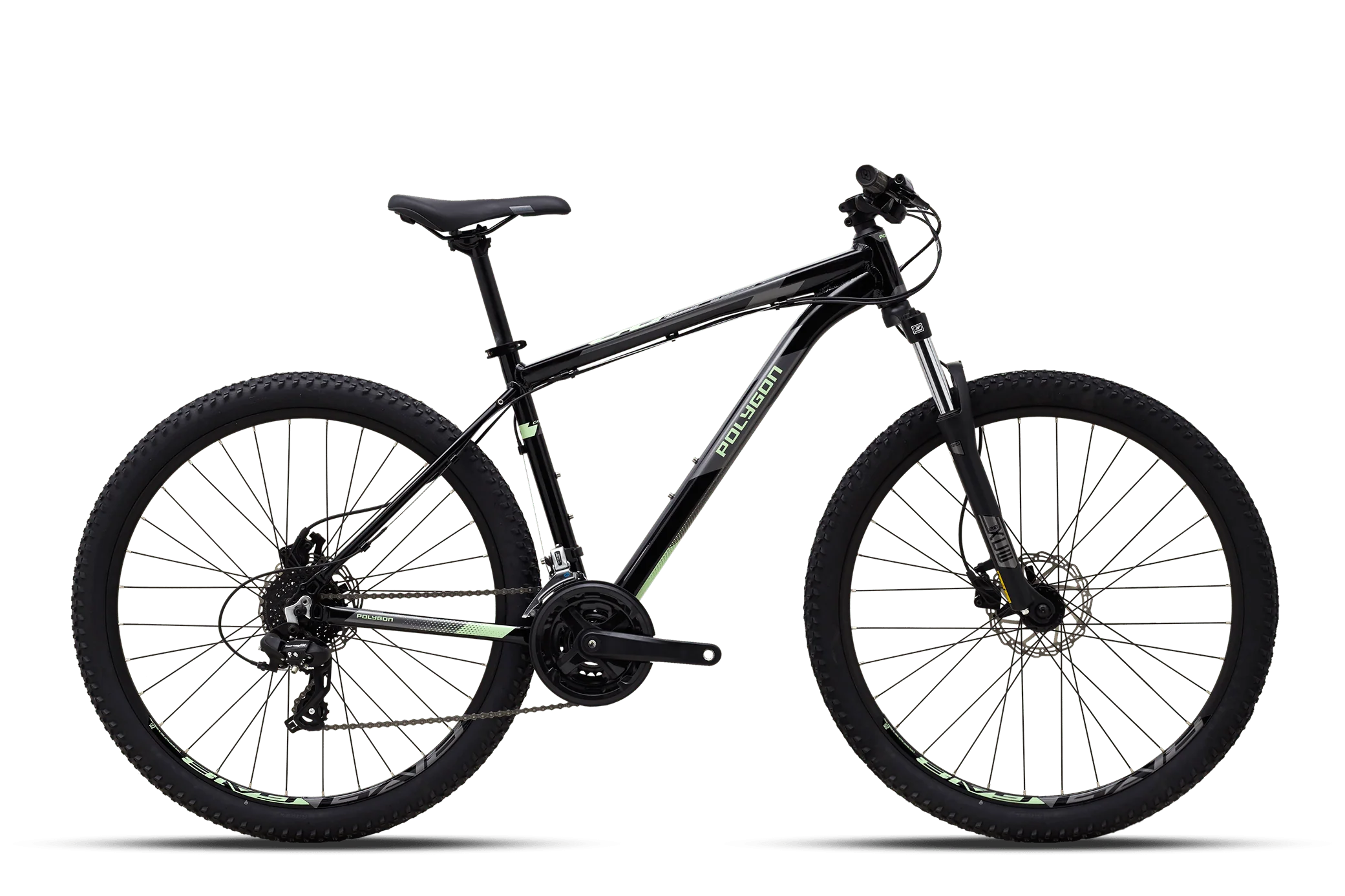

Polygon Cascade 4 MTB Bicycle (2021)
The Cascade 4 was created to be versatile bikes for riders who are looking for a bike to commute to work during the weekdays, and planning to go for recreational riding on the weekends. The Cascade is built with a lightweight and durable AL6 frame with modern geometry for a more comfortable ride. The component spec includes: 27.5” wheels for less rolling resistance, a 100mm travel suspension fork to smooth out the bumps while riding down fire roads, and disc brakes to keep riders in control. The new Cascade 4 is a reliable companion for day-to-day use and sport.
|
AL6 XC SPORT |
|
SUNTOUR XCM, 100MM 27.5" TRAVEL |
|
- |
|
ZS 44/28.6 | ZS 44/30 |
|
ENTITY OE E: 45MM, BB: 31.8MM |
|
STEEL W:680MM R:40MM BB:31.8MM |
|
SHIMANO RD-TX800 7/8-SPEED DA |
|
SHIMANO SL-M315 3X8 ALTUS |
|
Bottom Bracket |
CARTRIDGE BB |
|
PROWHEEL TA-CQ68 42/34/24T 170MM |
|
SHIMANO CS-HG200 9-SPEED 11-36T |
|
KMC Z-7 8-SPEED |
|
PP FLAT PEDAL |
|
ALHONGA HJ-OD07 HYD D-BRAKE |
|
DOUBLE WALL ALLOY RIMS W/ ALLOY HUBS |
|
PERFORMANCE TIRE 27.5" X2.1 |
|
FOMING STEEL RAIL |
|
ENTITY SPORT, 15MM OFFSET, 27.2MMX350MM |
|
27.5 |
|
GREEN and BLACK |
|
- |
| Height/cm | 152.5-165 | 162.5-175 | 172.5-185 | 182.5-195 |
|---|---|---|---|---|
| Size | S | M | L | XL |
| Seat Tube Length/in | ✔ | ✔ | ✔ | ✔ |
Geometry
| A | B | C | D | E | F | G | H | I | J | K | L | ||
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 406 | 73 | 73 | 100 | 69 | 565 | 303 | 47 (DROP) | 430 | 1065.7 | 383.7 | 593.1 | 700 |
| M | 456 | 73 | 73 | 105 | 69 | 585 | 303 | 47 (DROP) | 430 | 1086.1 | 402.2 | 597.8 | 742 |
| L | 500 | 73 | 73 | 110 | 69 | 604 | 303 | 47 (DROP) | 430 | 1105.6 | 420 | 602.5 | 777.5 |
Original: $309.36
-70%$309.36
$92.81Product Information
